DISCOVER our modular system
The turnkey solutions include liquid and powder-dosing systems to combine with gel and granulate flowpacks or bottle filling systems or similar setups.
HIGH TECHNOLOGY, SMART INVESTMENT
Our modular machines are designed to adapt to your specific production needs. Each module is built to be efficient and, most importantly, cost-effective. With SETIN, you can automate your processes without facing major expenses, while benefiting from cutting-edge technology that grows with your business.

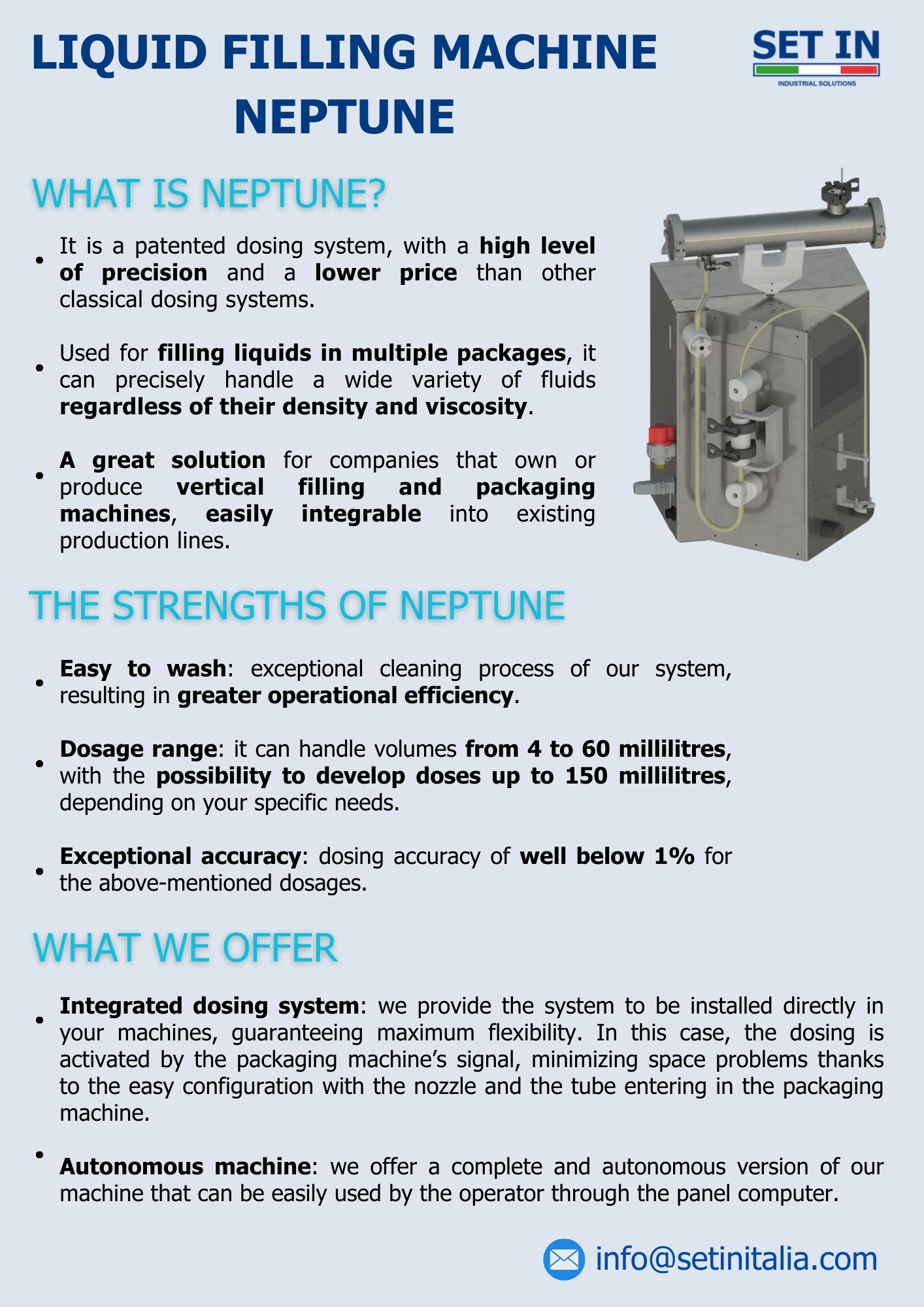

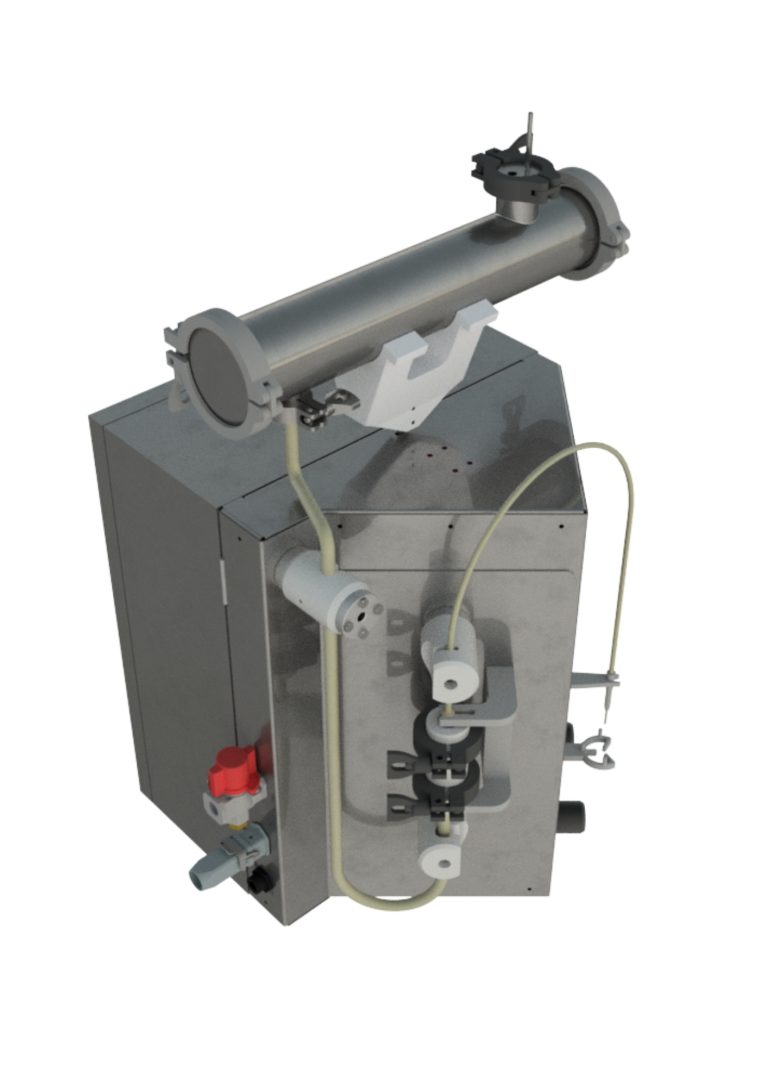

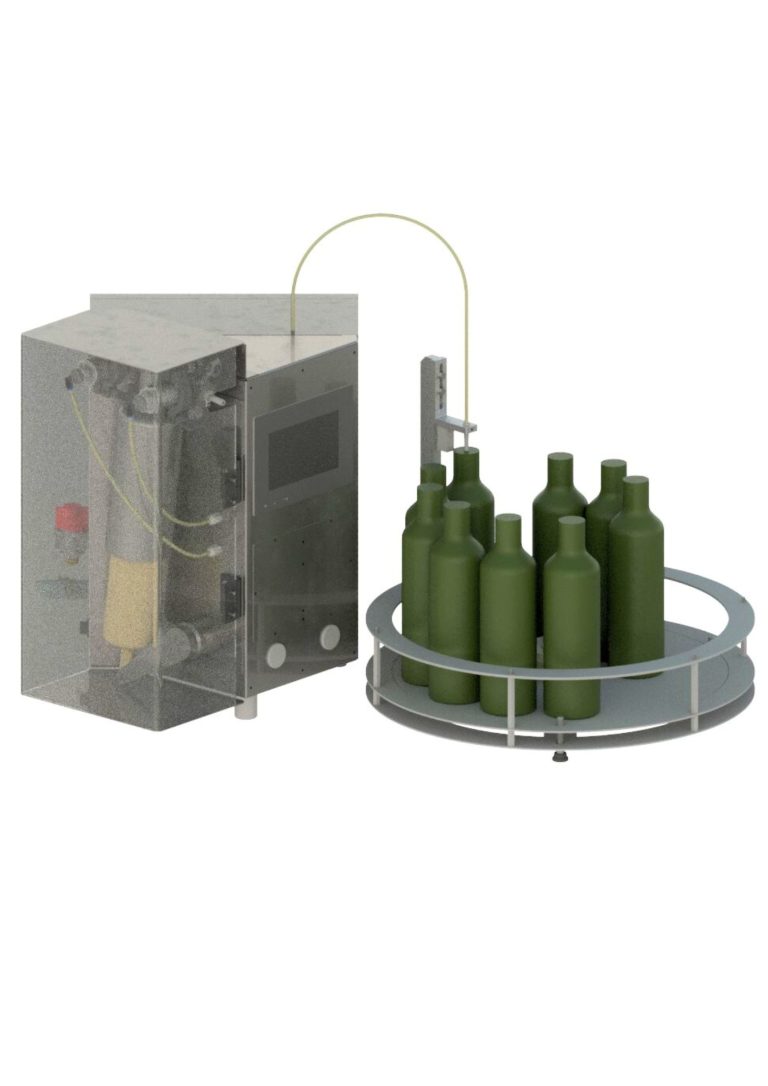

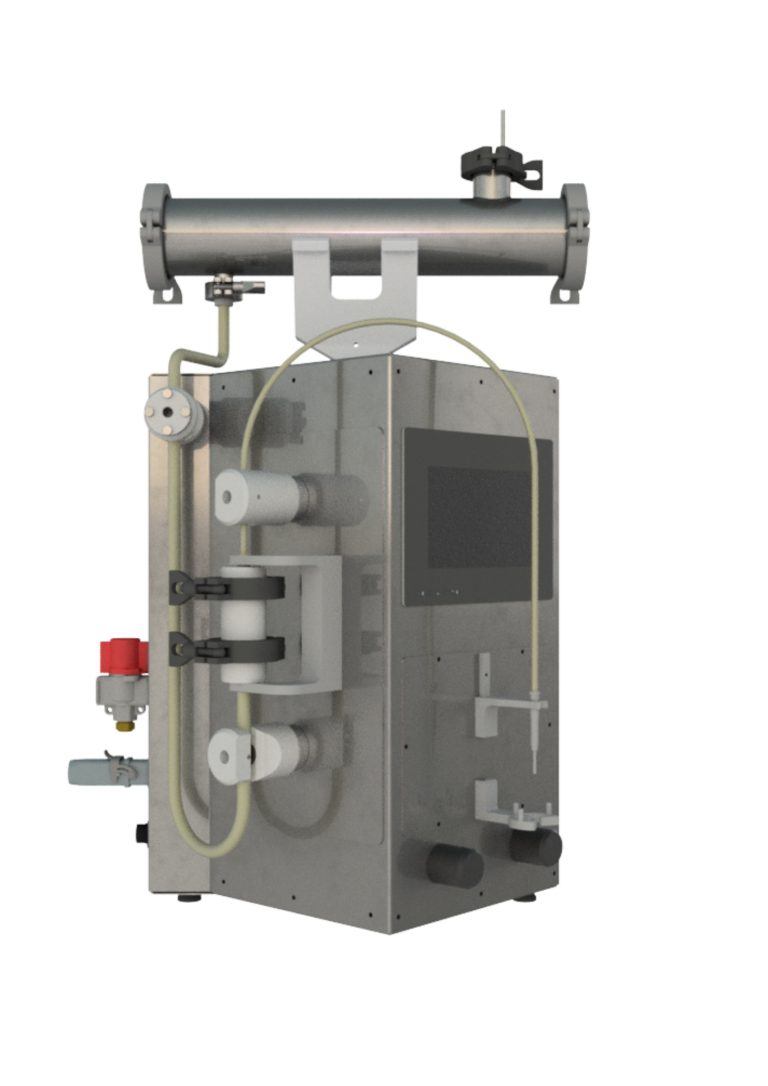

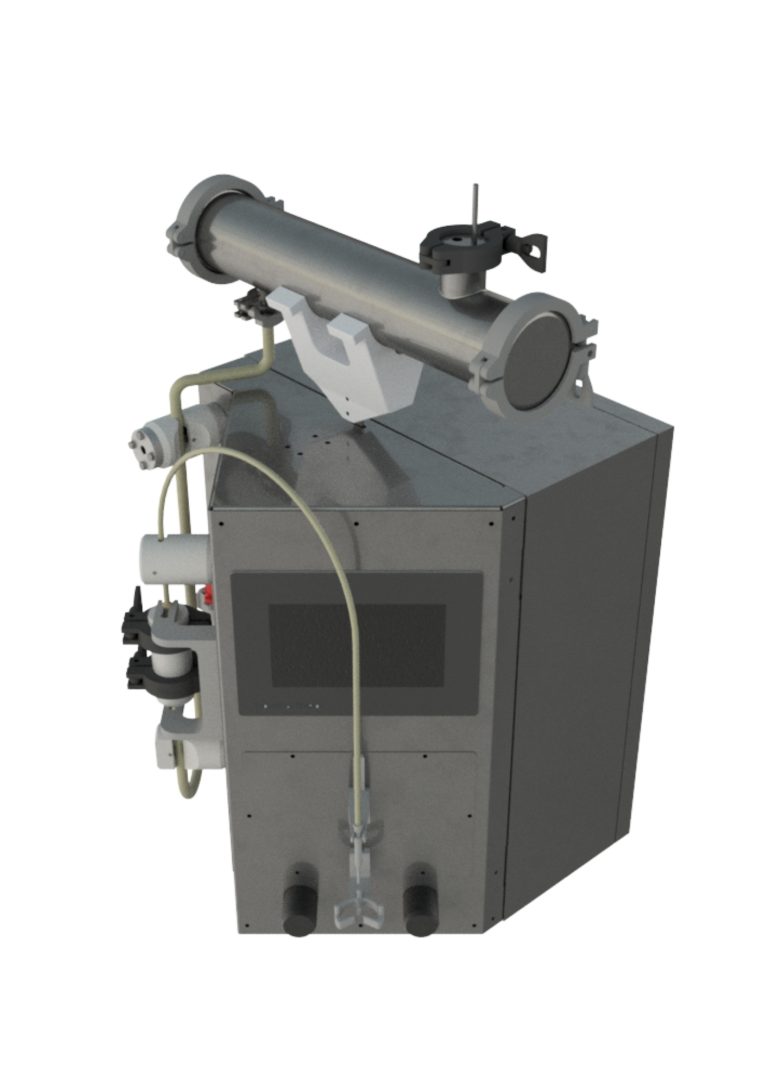

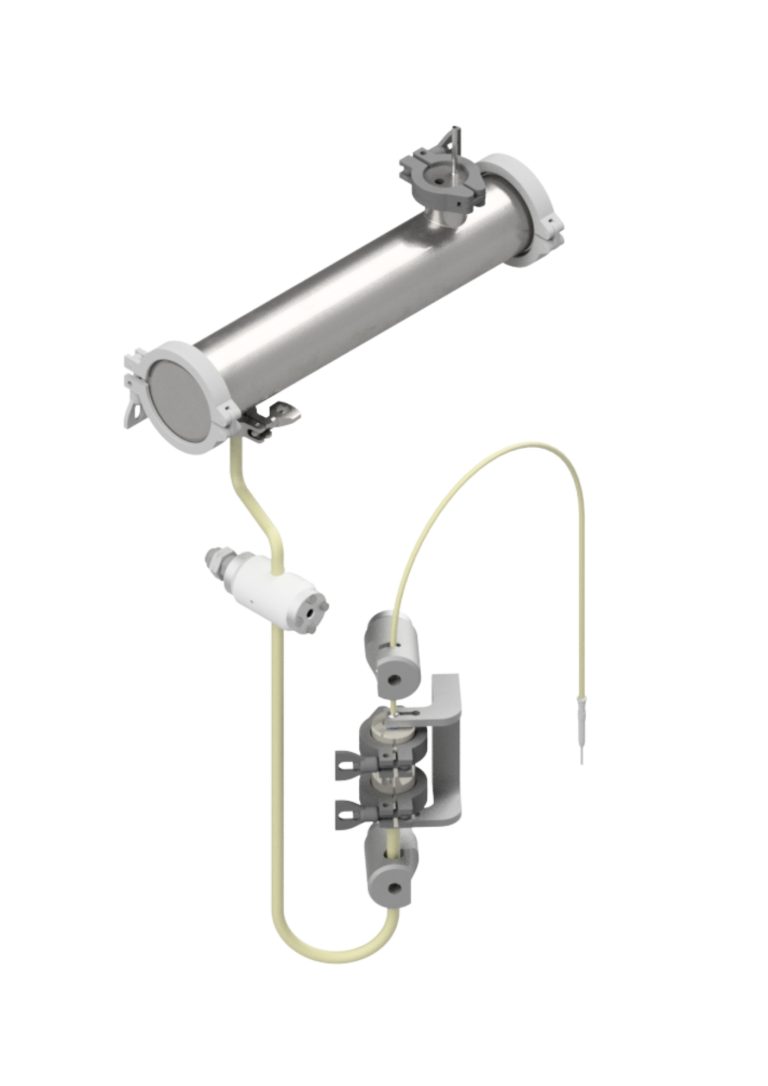

NEPTUNE
LIQUID FILLING MACHINES
CLEANING
All component are easy to clean and sterilize by autoclave.
DIMENSIONS LxWxH
450x400x550mm
WHITE LABEL
All solutions can benefit from white labeling services.
| CRITERIA | NEPTUNE ESSENTIAL | NEPTUNE 60 | NEPTUNE 60 GEMINI | NEPTUNE 120 | NEPTUNE 120 GEMINI | NEPTUNE 750 | NEPTUNE ∞ | NEPTUNE ∞ | NEPTUNE HD | NEPTUNE HD |
|---|---|---|---|---|---|---|---|---|---|---|
| VOLUME (ml) | ∞ | UP TO 60 | UP TO 60 (X2) | UP TO 120 | UP 120 (X2) | UP TO 750 | ∞ | ∞ | ∞ | ∞ |
| DOSER N° | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | 1 |
| TECHNOLOGY | LOAD CELL + FLOW CONTROL VALVE | ELASTOMER | ELASTOMER | ELASTOMER | ELASTOMER | VOLUMETRIC PUMP | ALUMINIUM PERISTALTIC PUMP | STAINLESS STEEL PERISTALTIC PUMP | PE GEAR/LOBE PUMP | STAINLESS STEEL GEAR/LOBE PUMP |
| TANK | 30L | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | OPTIONAL | OPTIONAL | OPTIONAL | / | / |
| PRODUCTIVITY | / | UP TO 60 | UP TO 60 (X2) | UP TO 60 | UP TO 60 (X2) | UP TO 45 | / | / | / | / |
| DISPOSABLE | NO | YES | YES | YES | YES | / | YES | YES | / | / |
| PRICE RANGE (starting from) | 2600 € | 4500 € | 5500 € | 5000 € | 6000 € | 5500 € | 5000 € | 6500 € | 4000 € | 6000 € |
| DOSING ACCURACY | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | < 1% | < 1% | / | / |
| TYPE OF FLUID | FLUID IN GENERAL | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL | LOW DENSITY FLUIDS (NO SOLVENT) | LOW DENSITY FLUIDS (NO SOLVENT) | DENSE FLUID | DENSE FLUID |
| OPTIONAL | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm (ONLY FOR TIME BASED DOSAGES) | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm, UPPER HOPPER |
| SECTOR | PHARMA, COSMETIC, FOOD, CHEMICAL, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, CHEMICAL, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, CHEMICAL, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, CHEMICAL, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, CHEMICAL, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD,NUTRACEUTICAL | FOOD, CHEMICAL, NUTRACEUTICAL | PHARMA, COSMETIC | FOOD, CHEMICAL | FOOD, CHEMICAL |
APPLICATIONS
A SEA OF SOLUTIONS
NEPTUNE is our first modular machine: a patented dosing system, with a high level of precision and a lower price than other conventional dosing systems. Particularly suitable for the pharmaceutical, food and cosmetic sector, Neptune doses any type of fluid regardless density and viscosity.
DO YOU WANT TO SEE NEPTUNE LIVE?

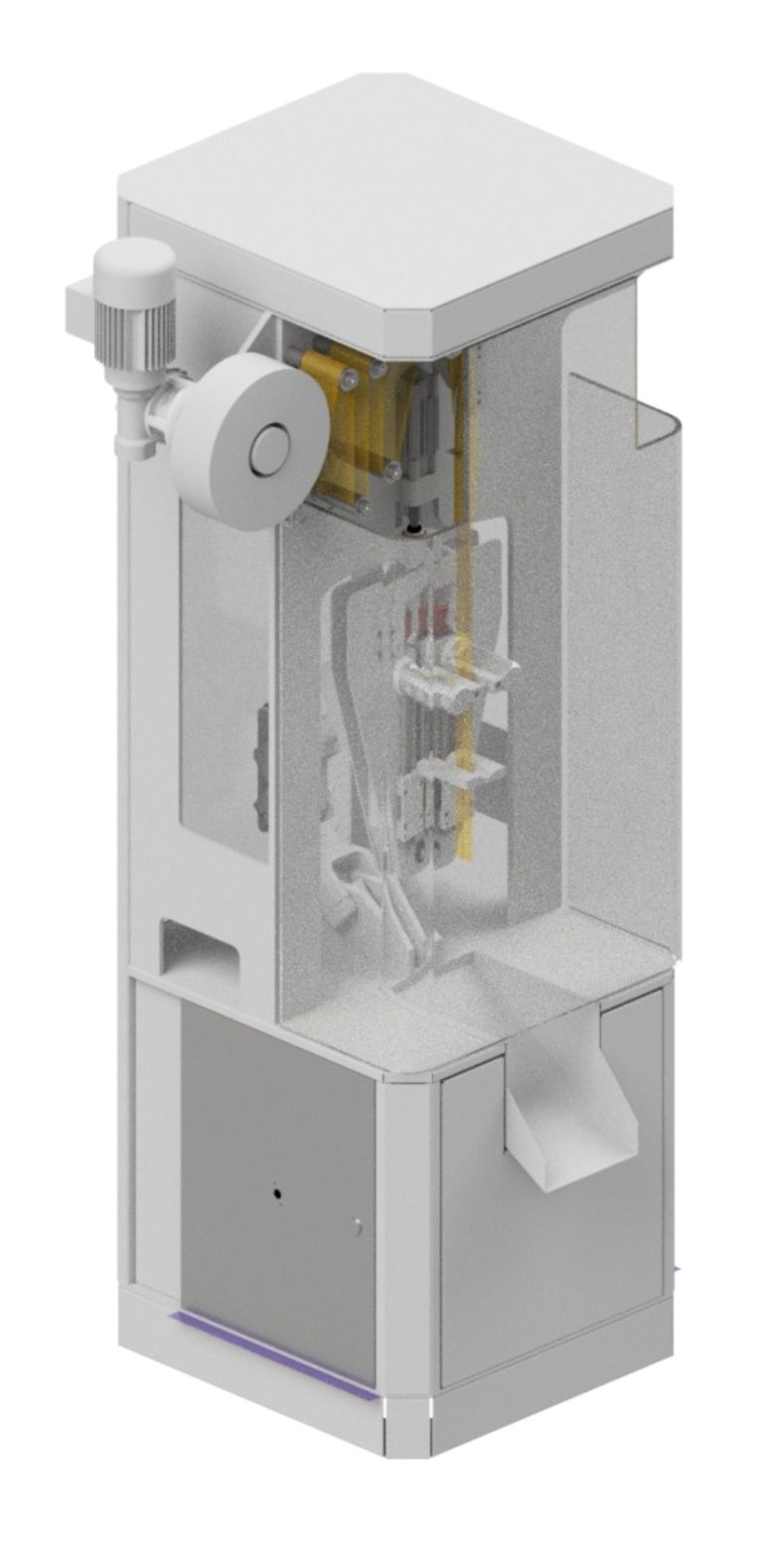

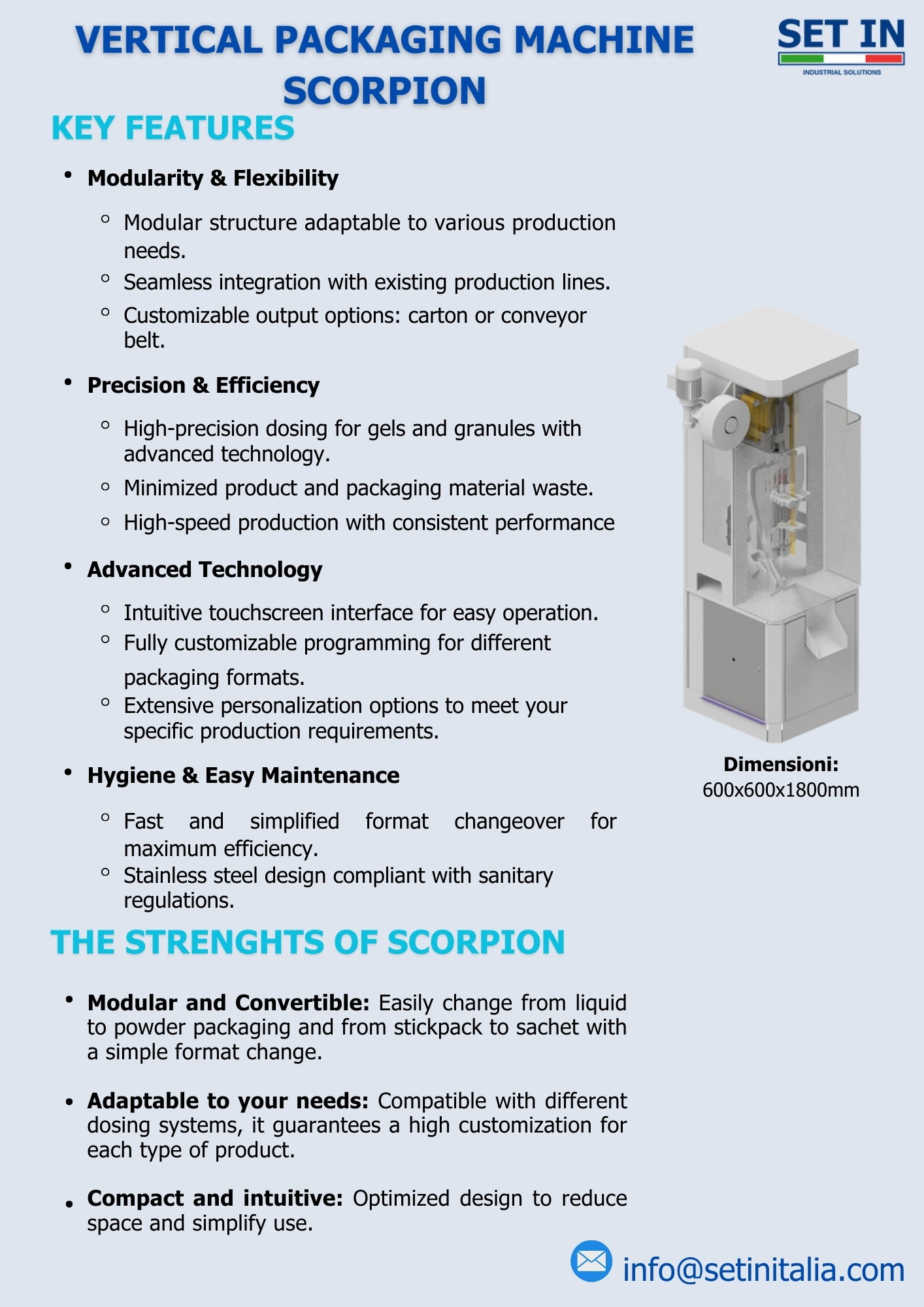

SCORPION
VERTICAL PACKAGING MACHINES
Stick pack
Maximum diameter: 25 mm
Maximum length: 150 mm
Sachet
Maximum width: 80 mm
Maximum height: 150 mm
Dimensions
600x600x1800mm
| CRITERIA | SCORPION MONO | SCORPION MONO | SCORPION GEMINI | SCORPION GEMINI |
|---|---|---|---|---|
| ROW N° | 1 | 1 | 2 | 2 |
| PRODUCTIVITY | UP TO 50 | UO TO 50 | UP TO 100 | UP TO 100 |
| PACKAGING | STICKPACK | SACHET | STICKPACK | SACHET |
| PRICE RANGE (starting from) | 19500 € | 19500 € | 22500 € | 22500 € |
| OUTPUT MODULE | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT |
| MATCHING DOSING FORMS | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER |
| SECTOR | PHARMA, COSMETIC, FOOD, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, NUTRACEUTICAL | PHARMA, COSMETIC, FOOD, NUTRACEUTICAL |
APPLICATIONS
FAST, ACCURATE, EFFICIENT
SCORPION meets the growing demand for single-portion, practical, and easy-to-distribute products. Our vertical packaging machine provides a innovative solution for liquid and powder packaging in the food, cosmetic and nutraceutical sector.
Scorpion can be combined with a variety of dispensers to suit different product types – from powder and granule dosers to liquid an gel filling machines.
KEY FEATURES
- EASILY CONVERTIBLE
- ADAPTABLE TO YOUR NEEDS
- COMPACT AND INTUITIVE DESIGN

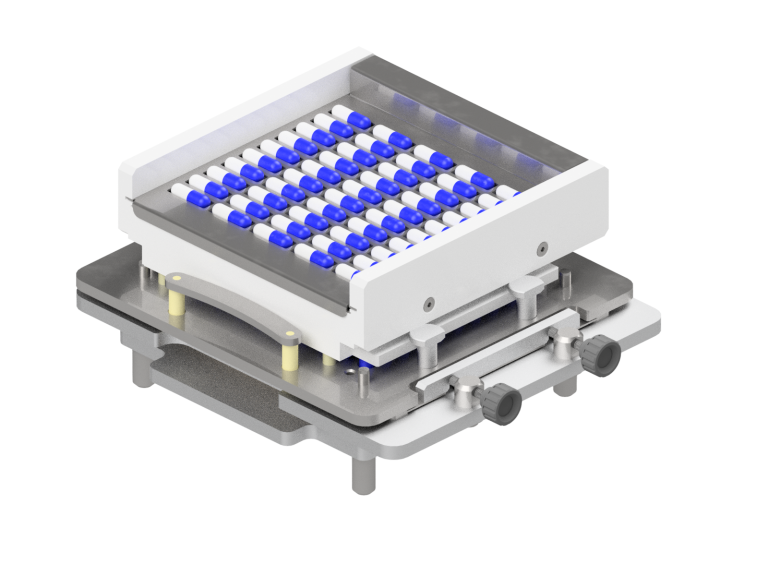

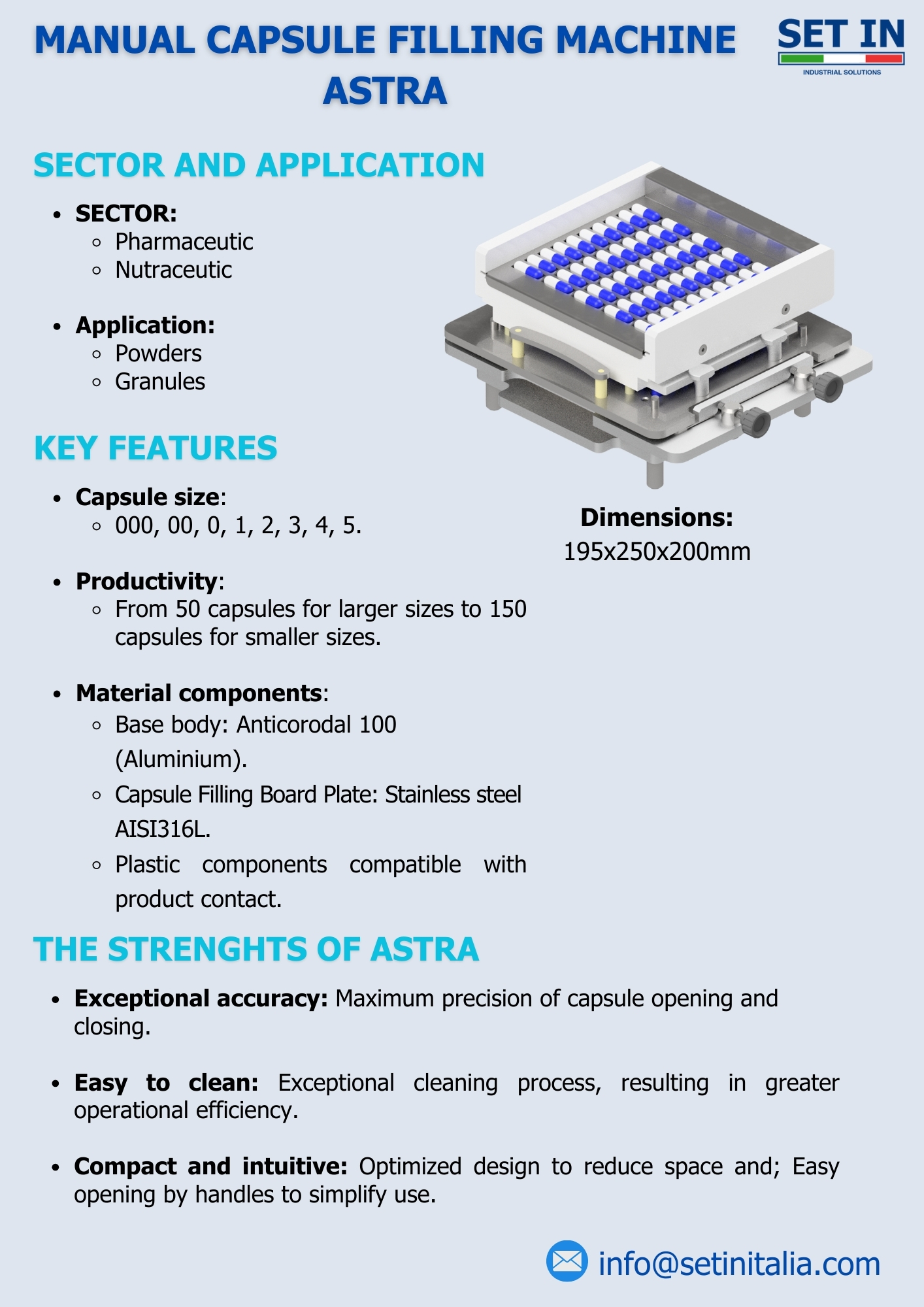

ASTRA
CAPSULE FILLING MACHINES
Level of automation
Automatic, semiautomatic, manual.
Productivity
From 50 capsules for larger sizes to 150 capsules for smaller sizes.
Dimensions
195x250x200mm
| CRITERIA | ASTRA LAB | ASTRA ROBOT |
|---|---|---|
| CAPSULE SIZE | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 |
| PRICE RANGE (starting from) | 800 € | ASK A QUOTATION |
| MATCHING DOSING OUTPUT | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER |
| SECTOR | PHARMA, NUTRACEUTICAL, FOOD | PHARMA, NUTRACEUTICAL, FOOD |
A CONSTELLATION OF SOLUTIONS
Manufactured to the highest standards and compliant with current GMP standards, ASTRA meets the demand of reliable and compact manual capsule filling machine. Moreover, the intuitive design design allows for quick cleaning and effortless part changes, maximizing operational efficiency. Each part in contact with the capsules is fully traceable, ensuring quality and compliance.
KEY FEATURES
- EXCEPTIONAL ACCURACY
- EASY TO CLEAN
- COMPACT AND INTUITIVE DESIGN
GET IN TOUCH WITH US
Would you like more information? Do not hesitate to contact us, we are glad to listen to you and answer any questions.
